Hydraulic L7350mm AAC Machine Overturn Table

Brand Name : SANKON

Model Number : CUSTOMIZED

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1SET

Price : USD1~25000/SET

Payment Terms : L/C, T/T

Supply Ability : 1200SETS/YEAR

Delivery Time : 3MONTHS

Packaging Details : SUIT FOR SHIPPING

Name : Overturn crane

Rated voltage : 380V

Brand : SANKON

Certificate : ISO9001/CE

Packing type : Suit for shipping

After-sales service provide : Engineers available to service machinery overseas, Field maintenance and repair service, Field installation, commissioning and training, Online support

Contact Now

We manufacture a wide range of building material machines, including block making machines, concrete panel machines, dry mortar machines, and more.


Our main products include AAC block production line,ALC panel production line,ALC panel production installation of cinstruction equipment and their matched equipment.


Overturn Crane


Description:

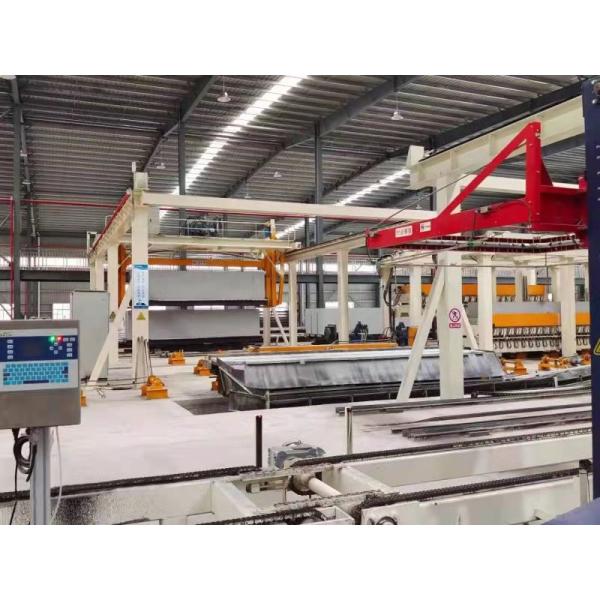

Turnover hanger (refer to picture) is main matched machine of autoclaved aerated concrete. It is installed custom-made vehicle, the lifting and coming-down is controlled by the moving, and it is guided by the guide support. It is featured with stability, no deflection , it is a special tool for assembling mold and de-mold.


Application:

It has 2 functions.

It lifts the billet after curring, the mold frame and side panel, to turn 90° to cutting table and then the mold open and de-mold, the billet can be cut after the mold frame being lift away.

Clamp the mold and side panel turn 90° to the mold and then casting again.

Main technical parameter:

Max size
Lenth7350mm
Width1919mm
Higth5350mm
Weight3500kg
Driving system
Hydraulic station
Turning cylinder
Diameter100mm
Stroke755mm
Qty1PC
Lift Cylinder
Cyilinder diameter100mm
Stroke1500mm

Structure:

The turnover hanger is composed of beam, guide device, turning device, lifting device, side panel clamp, loose device and hydraulic station. The beam is made of rectangle steel pipe with good rigidity, simple structure and it is easy to install and adjust. The hydraulic station, lifting device, side panel clamp and loose device is placed on the top of the cross beam and the turning device is place on the vertical beam.


In addition to complete equipment sets for AAC production lines, SANKON also offers clients one stop services, such as technical support, installation and commissioning, training, etc.

We are also able to provide variable AAC block plant solutions to clients.
